Description

Race Proven Worldwide!

Our Next Gen DAZA Full-Frame Turbo Kit is capable of making big power on your RS3 or TTRS.

ProRace series offers the maximium power to challange the world record for the platform, we offer turbo options from Precision Turbo Next Gen 6670/6870/7275, capable of power from 1100hp to 1380hp.

Our kit utilizes only the best quality components to ensure your engine makes reliable power all day every day.

Control boost with a TiAL MVR 44mm External Wastegate including all springs so you can tailor it to your setup! Available in 3 colors (Red, Silver, and Purple)

Our Turbo kit includes everything you need to get your car up and running with no additional hardware or fabrication required!

This kit fits both Left Hand-Drive and Right-Hand Drive vehicles.

NEW features:

Stainless steel manifold heat shield

Kit Includes:

Ceramic coated turbine housing

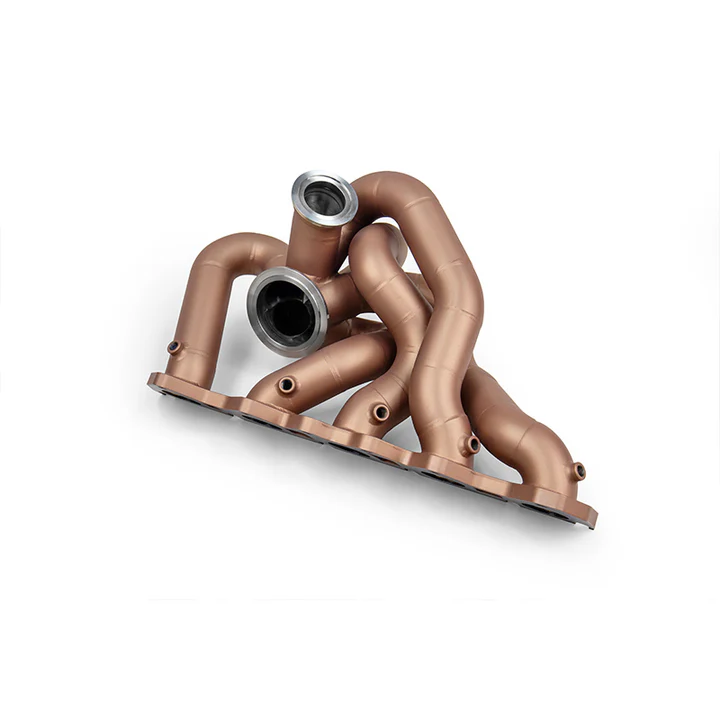

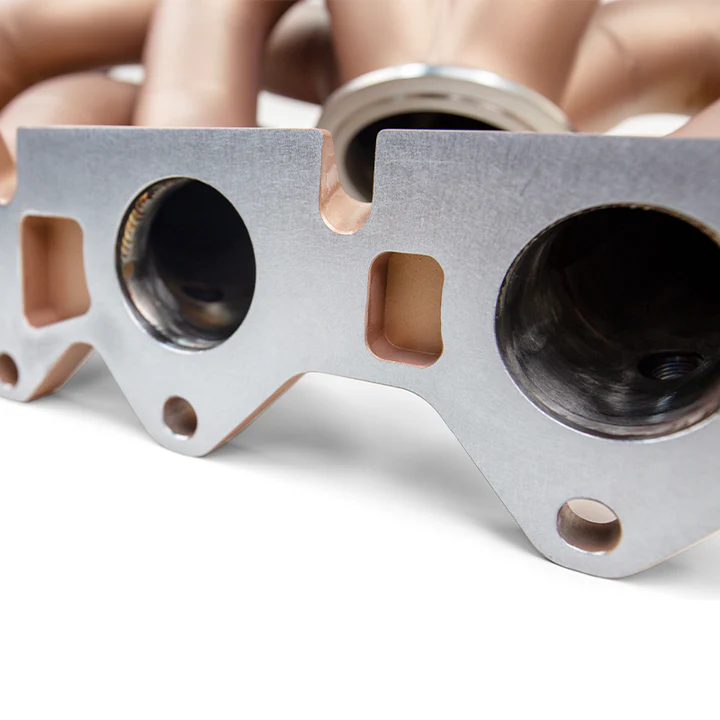

JDY V-Band Ceramic coated Turbo Manifold.

• Built-in House
• EGT Ports are added per cylinder for data acquisition and the best tune
• 44mm External Wastegate Provision
• High quality Ceramic coating

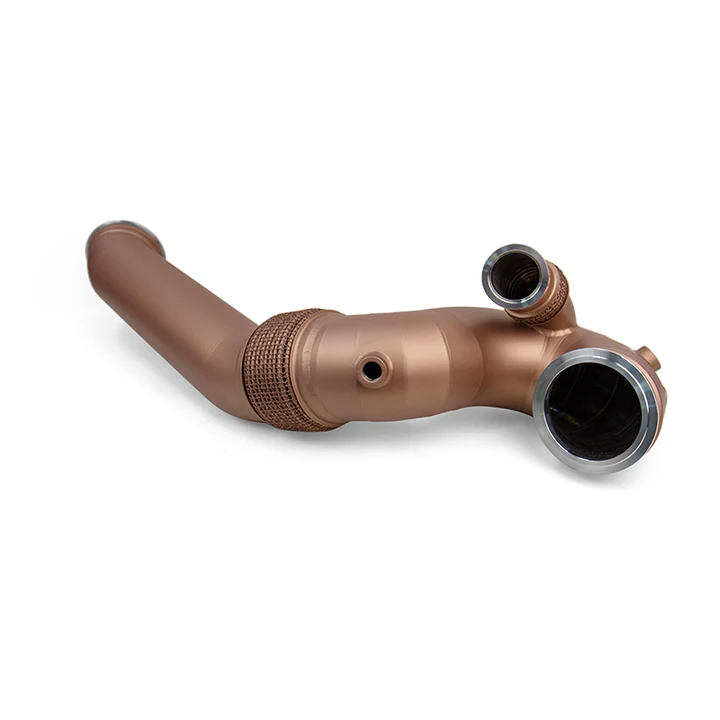

JDY V-Band Recirculated Downpipe-option of 3.5/4 inch

• 3.5″/4″ Diameter
• High quality Ceramic coating
• Wastegate Dump Recirculated
• Flex Bellow for stress relief

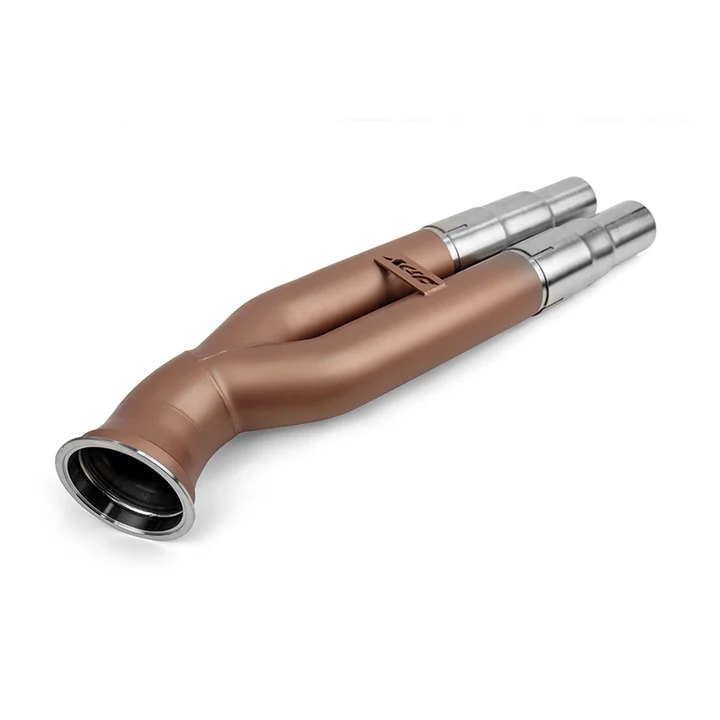

JDY Midpipe

• 3.5″ Diameter
• High quality Ceramic coating
• Mates up to OEM Midpipes

JDY Installation Hardware

• JDY Turbo Inlet Pipe
• JDY Turbo Discharge pipe
• Includes Turbo Oil Fittings
• Oil Feed and Return hard pipe
• Coolant Delete / Crossover pipe to loop the OE Water Lines
• V-Band Clamps
• Intake Clamps
• Turbo Manifold Studs + Nuts

TiAL MVR 44mm Wastegate

• Available in Red, Silver, and Purple
• Includes All Springs for the perfect boost control

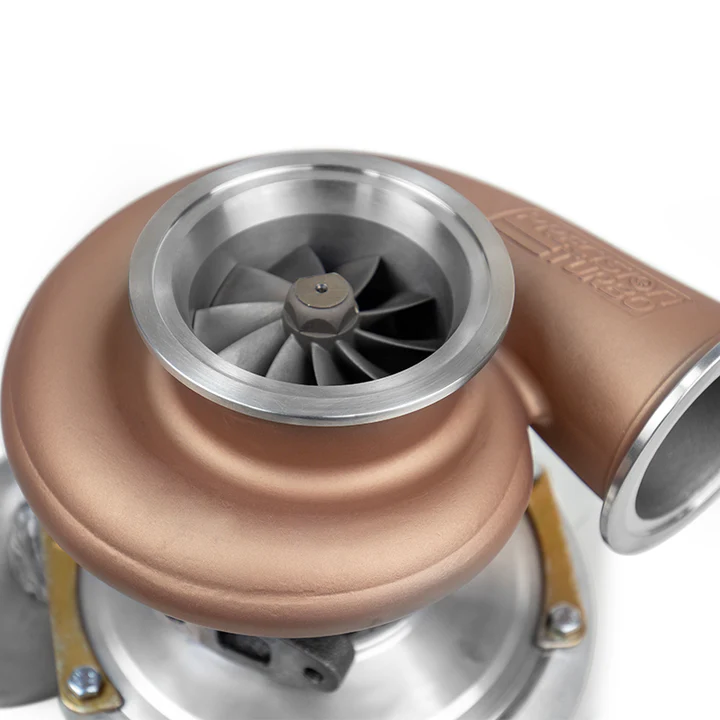

Next Gen CEA Turbocharger

• Exclusive Next Gen CEA®
  (Competition Engineered Aerodynamics) compressor wheel machined from a 2618 aluminum forging
• Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
• Higher efficiency and faster transient response for maximum power and performance

Pick any of the following depending on your power goals

Next Gen 6670

• Rated for 1100HP
• Ported S Compressor Cover. 4″ Inlet, 2.5″ Discharge
• 0.81 A/R V-Band 310 Stainless Steel Turbine Housing
• Welded Elbow for Plug ‘n Play Use with our JDY KIT

Next Gen 6870

• Rated for 1200hp
• Ported H Compressor Cover. 4″ Inlet, 3.0″ Discharge
• 0.81 A/R V-Band 310 Stainless Steel Turbine Housing
• Welded Elbow for Plug ‘n Play Use with our JDY KIT

Next Gen 7275

• Rated for 1380hp
• Ported H Compressor Cover. 4″ Inlet, 3.0″ Discharge
• 0.84 A/R V-Band 310 Stainless Steel Turbine Housing
• Welded Elbow for Plug ‘n Play Use with our JDY KIT

-3 parts Mac Valve included in the kit

Instruction Manual:

https://cdn.shopify.com/s/files/1/0478/7060/7520/files/Installation_guid-V2_-2.5TFSI_JDY_TTRS_8SRS3_8V2_DAZA_DNWA_Turbo_Kit_-_Direct_Fit_f690f482-8b17-436e-8ce2-e47ce9d41eda.pdf?v=1692775453

MAC Valve Installation Diagram:

https://830533.app.netsuite.com/core/media/media.nl?id=198057&c=830533&h=5f717ce5df1c1d633d24&_xt=.pdf&ck=ykSqcscCAvNeH0Qq&vid=ykSqcscCAvZeH8cY&cktime=131872&cart=73539&addrcountry=AU&addrzip=2131&gc=clear

Confirmed Applications
