Description

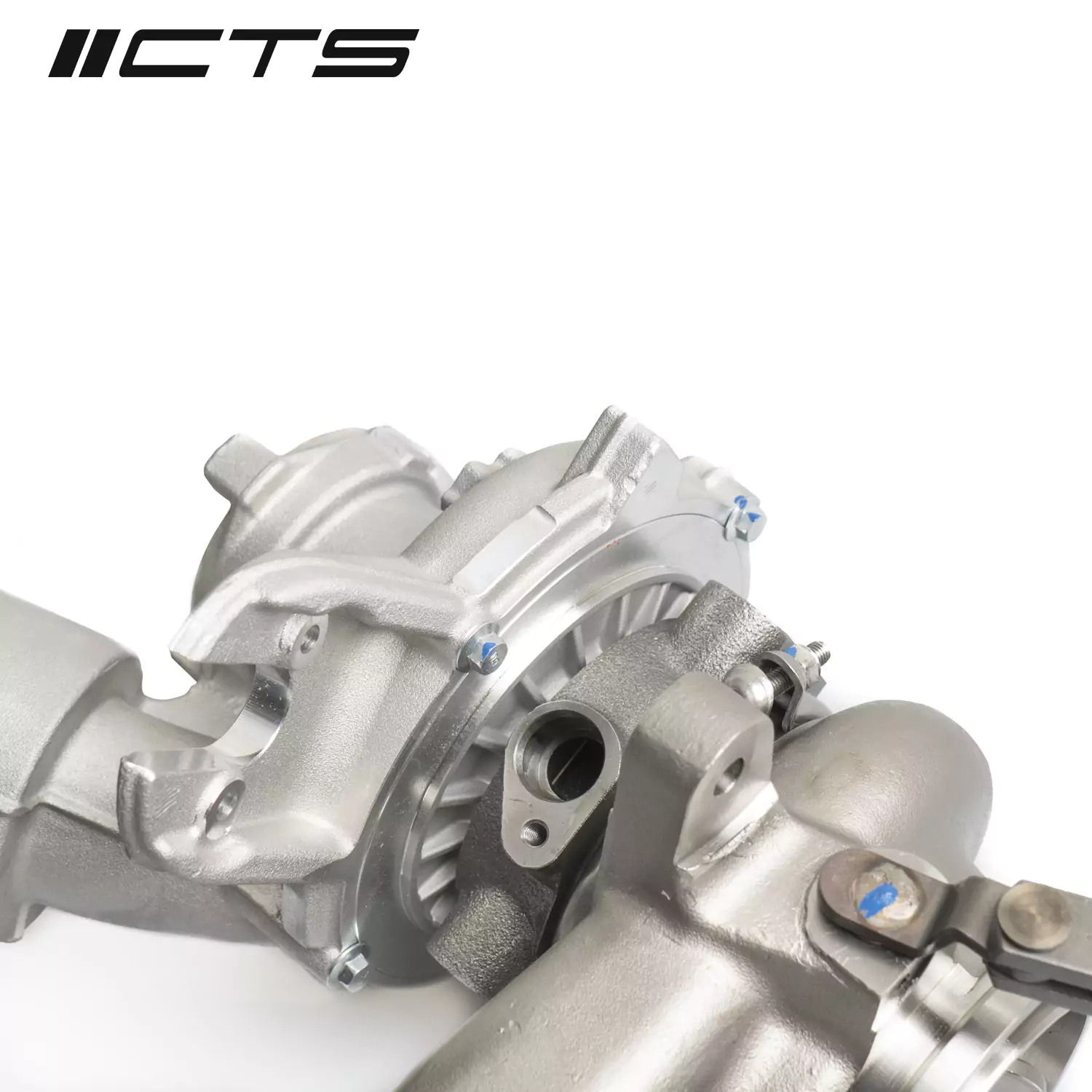

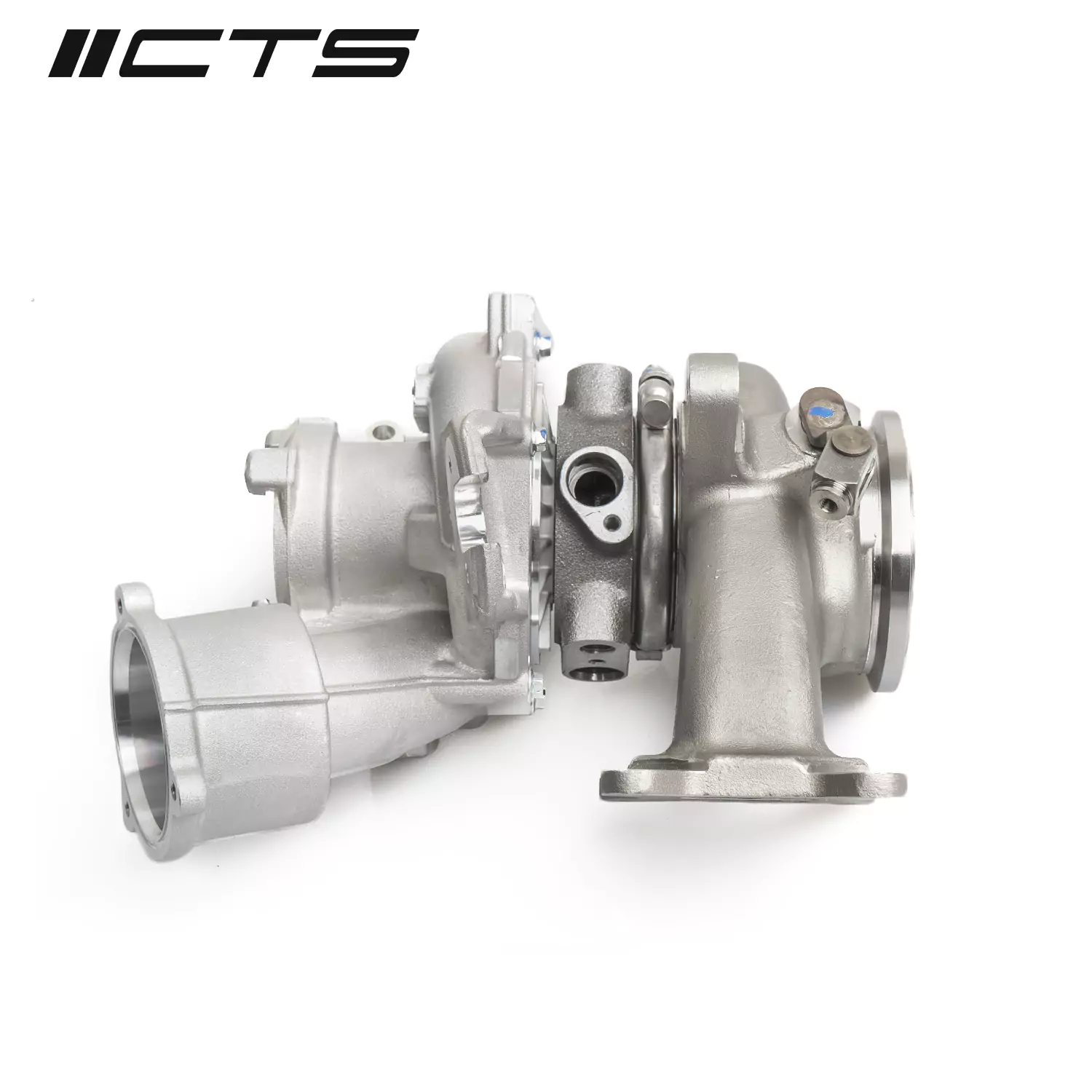

CTS Turbo is proud to announce our CTS IS38 replacement turbocharger for MQB vehicles.

Our IS38 replacement turbocharger can be installed into 2015-2020 MQB vehicles as a direct replacement for IS38 turbo; or as an upgrade to IS12 and IS20.

Please note that proper tuning software must be used when upgrading from a smaller turbo – check with your tuning software provider. Any IS38 software is compatible.

CTS Turbo downpipe and intercooler are recommended if upgrading.

Features:

• • Brand new unit, no core required

• • Exact replacement for factory IHI IS38 turbo

• • Upgraded turbine shaft and bearings

• • Stainless steel turbine housing

• • Manufactured to OEM-spec tolerances

Fitment is for all MQB-based EA888.3 vehicles (tuning required for IS12 and IS20 vehicles):

• • 2015-2019 VW Golf/Sportwagen/Alltrack

• • 2015-2020 VW GTI

• • 2015-2019 VW Golf R

• • 2019-2023 VW Jetta GLI

• • 2018-2021 VW Arteon

• • 2015-2020 Audi A3

• • 2015-2020 Audi S3

• • 2015-2020 Audi TT

• • 2015-2020 Audi TTS

• • ROW models can vary

Installation is a straight-forward replacement of the factory turbo, using all OEM gaskets and hardware. Simply transfer your diverter valve or BOV and wastegate actuator (not included).

Hardware required (not included):

• • 06L253039A – Turbo Inlet Gasket

• • 5Q0253115B – Turbo Outlet Seal

• • WHT007210 – Turbo Mount Nuts (x4)

• • N90067202 – Turbo Oil Line O-ring (x2)

• • WHT006112 – Turbo Oil Line Gasket

• • WHT006113 – Turbo Oil Line Gasket

• • WHT006114 – Coolant Hose O-Ring

• • WHT006124 – Coolant Hose O-Ring

• • WHT005558 – Coolant Hose O-Ring

NOTE: Always follow the proper procedure for checking/adjusting the wastegate actuator when installing the turbo! Always replace engine oil and prime the turbocharger before starting. Professional installation recommended.
